Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems safe. Components such as ferrules, clamps, sanitary valves, and fittings are specified to maintain clean fluid paths. They greatly lower contamination risks and make cleaning easier.
Sanitary Valves And Fittings
Selecting the right Hygienic Fittings and Ss Sanitary Fittings affects product safety, uptime, and regulatory compliance. The material grade, surface finish, and compatibility of connections are important factors. They influence the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are essential for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. They share catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings are essential for contamination control in clean systems.
- Material grade and surface finish influence cleanability and corrosion resistance.
- Compatible Hygienic Fittings help reduce downtime during upgrades, changeovers, and maintenance.
- Catalogs and reviews from CSI and Installation Parts Supply support dependable sourcing.
- Choosing the right Sanitary Valves And Fittings helps ensure product quality and regulatory compliance.
Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems: Overview
Clean-process systems rely on components made for hygiene, safety, and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features reduce contamination and support clean-in-place and sterilize-in-place procedures.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are built to create crevice-free connections. This minimizes bacterial growth, maintaining product purity during transfer and processing. Their design supports faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors use hygienic fittings to support safety standards and reduce spoilage risk. Beverage manufacturers use them to protect flavor and shelf life. Pharmaceutical facilities choose fittings that meet strict regulatory and validation requirements.
Biotech facilities need reliable sanitary connections for fermentation, cell culture, and bioprocessing. These industries focus on traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is commonly selected for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help limit bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.

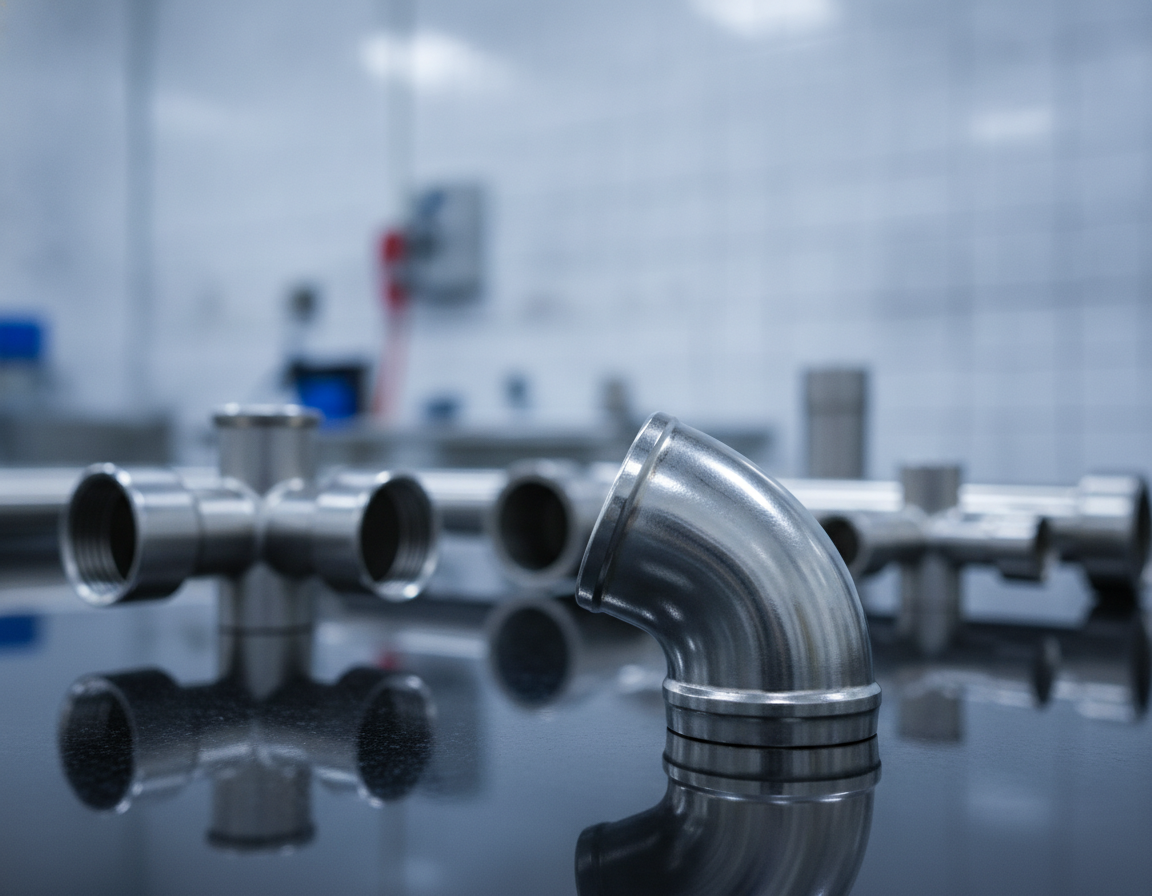

Stainless Steel Sanitary Pipe Fittings Explained
Stainless steel sanitary pipe fittings are important in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish limits contamination risk and makes cleaning easier. This guide will review common grades, typical component families, and finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel delivers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L offers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L at the design stage makes easier the procurement of SS Sanitary Fittings and associated parts.
Sanitary Fitting Product Types And Functions
Ferrules function as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings link flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing with compatible SS Sanitary Fittings helps minimize leaks, downtime, and maintenance problems.
Surface Finish And Cleanability Requirements
Surface roughness influences how residues adhere. A 32RA internal finish is a common specification that balances cost, cleanability, and food/beverage performance.
Electropolishing further refines the metal and enhances passivity. This treatment limits microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying consistent finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is easier.
| Part | Usual Material | Standard Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 stainless or 316L stainless | 32RA internal/external finish | Sanitary welded pipe ends |
| Two-piece Tri-Clamp clamps | 316L for demanding use | Polished or electropolished finish | Quick-release hygienic joints |
| Couplings and weld fittings | 304 and 316L stainless options | 32RA, electropolished optional | Permanent joins, elbows, tees |
| Sanitary Hose Fittings | 316L often specified | Electropolished for product contact | Flexible process lines and transfers |
| Sanitary valves and process fittings | 316L on wetted surfaces | Polished internal surfaces | Cleanable flow control in process lines |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, compare size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is chosen at the time of order.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material impacts both longevity and cleaning performance. 316L ferrules deliver superior resistance to chlorides in harsh environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This helps with the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Seek suppliers that show detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section explains common connection styles, brand interchangeability, and supplier reliability feedback.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own advantages and disadvantages regarding assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility is important when mixing components. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI highlight consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When evaluating suppliers, review lead times, documented quality, and after-sale support. Reliable shipping and clear spec sheets limit downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Style | Ideal Use | Cleanability | Interchangeability Notes |
|---|---|---|---|
| Clamp-style sanitary connection | Product-contact lines needing frequent disassembly | High cleanability with a removable gasketed seal | High if size and sealing face match; CSI fittings usually fit standard systems |
| Butt-Weld / Socket-Weld | Permanent process runs requiring smooth internal bores | Very high when welded and polished correctly | Cross-brand fit depends on matching standards and dimensions |
| Threaded | Low-risk applications away from product contact | Lower cleanability where threads contact process fluids | Less common in product-contact lines; verify material and surface finish |
| Sanitary hose and ferrule connection | Flexible runs and transfer lines | Good if ferrule and clamp are matched | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
How To Select Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide helps match size, material, finish, and gasket type to process requirements. Use the checks below to reduce downtime and support hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is a critical part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Assess pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings deliver conductivity and antimicrobial benefits in select systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks reduce costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is critical in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Correct assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Guidance for Sanitary Weld Fittings
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting common issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can lead to uneven compression and leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Surface damage repair considerations
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches may be polished out and electropolished to restore the required Ra level. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Recordkeeping and documentation
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records help with regulatory compliance and expedite troubleshooting efforts.
| Task | Interval | Primary Action | Important Notes |
|---|---|---|---|
| Sanitary clamp torque verification | After assembly and monthly | Use calibrated torque tools | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket inspection/replacement | At scheduled intervals or whenever defects appear | Check for cuts, hardening, swelling, or extrusion | Replace only with compatible gasket material |
| Ra and surface condition check | After weld work and during quarterly checks | Check Ra values and look for surface defects | Electropolish or refinish if Ra exceeds hygienic specification |
| Weld profile inspection | After installation and annually | Check for undercut, porosity, discoloration, and profile | Rework and polish fittings when defects appear |
| Cleaning and sterilization validation | According to each cleaning or sterilization cycle | Record process parameters during each cycle | Keep records for traceability and audits |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
A detailed catalog review is a critical first step. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, and dimensional specs. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and common stocking sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Item | Listed Size | Grade | Listed Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Two-piece single-pin clamp | Quarter-inch to three-quarter-inch | 304 | Standard finish | $3.91 |
| Two-piece single-pin clamp | One-inch size | Type 304 stainless steel | Standard finish | 4.91 USD |
| Two-piece single-pin sanitary clamp | 2″ | 304 stainless | Standard finish | $5.99 |
| Two-piece single-pin clamp | Two-and-a-half-inch size | 304 stainless | Standard | $6.93 |
| Two-piece single-pin clamp | Three-inch size | 304 | Standard | Approx. $7.54 |
| Two-piece single-pin sanitary clamp | 4″ | 304 | Standard catalog finish | Approx. $9.16 |
| TC sanitary ferrule | 2″ — 1.125″ OAL | 316L | 32RA ID/OD | 4.24 USD |
| Ferrule TC | 2″ size, 1.125″ overall length | Type 304 stainless steel | 32RA internal and external finish | 4.06 USD |
| Tri-Clamp ferrule | 3 inch | Type 316L stainless steel | 32RA ID and OD | 6.15 USD |
| Double-bolt high-pressure clamp | 1.5″ | Type 316 stainless steel | Polished | Approx. $12.93 |
| Double-bolt high-pressure clamp | Two-inch size | 316 | Polished finish | 14.62 USD |
| High-pressure double-bolt clamp | 3 inch | Type 316 stainless steel | Polished | Approx. $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are critical for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This reduces contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is critical for tight Sanitary Connections and easy interchangeability.
When selecting fittings, consider the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning support the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs show competitive pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
